Are you looking for the right tool for your special dressing application?
Our huge portfolio of over 3,000 different milling tools and blades also offers the ideal solution for individual dressing tasks. Let our competent experts advise you.
- HT milling knives for materials such as non-galvanised or galvanised steel, Usibor or other ultra-high-strength steels
- The CX-Cutter is available for ultra-conductive electrodes, which dresses the electrodes so smoothly that you can see your reflection in them
- With particularly large chip release opening and high tool life
- Optional screwed versions
- Raised milling tools especially for narrow guns
- Tools for different gun types, whether C or X gun, servo-pneumatic or electric motor, for gun inclination and different gun arm geometries
- Tools for individual parameter requirements, such as clamp force, dressing time, dressing intervals, dressing speeds, etc.
- Special tools to minimize electrode removal

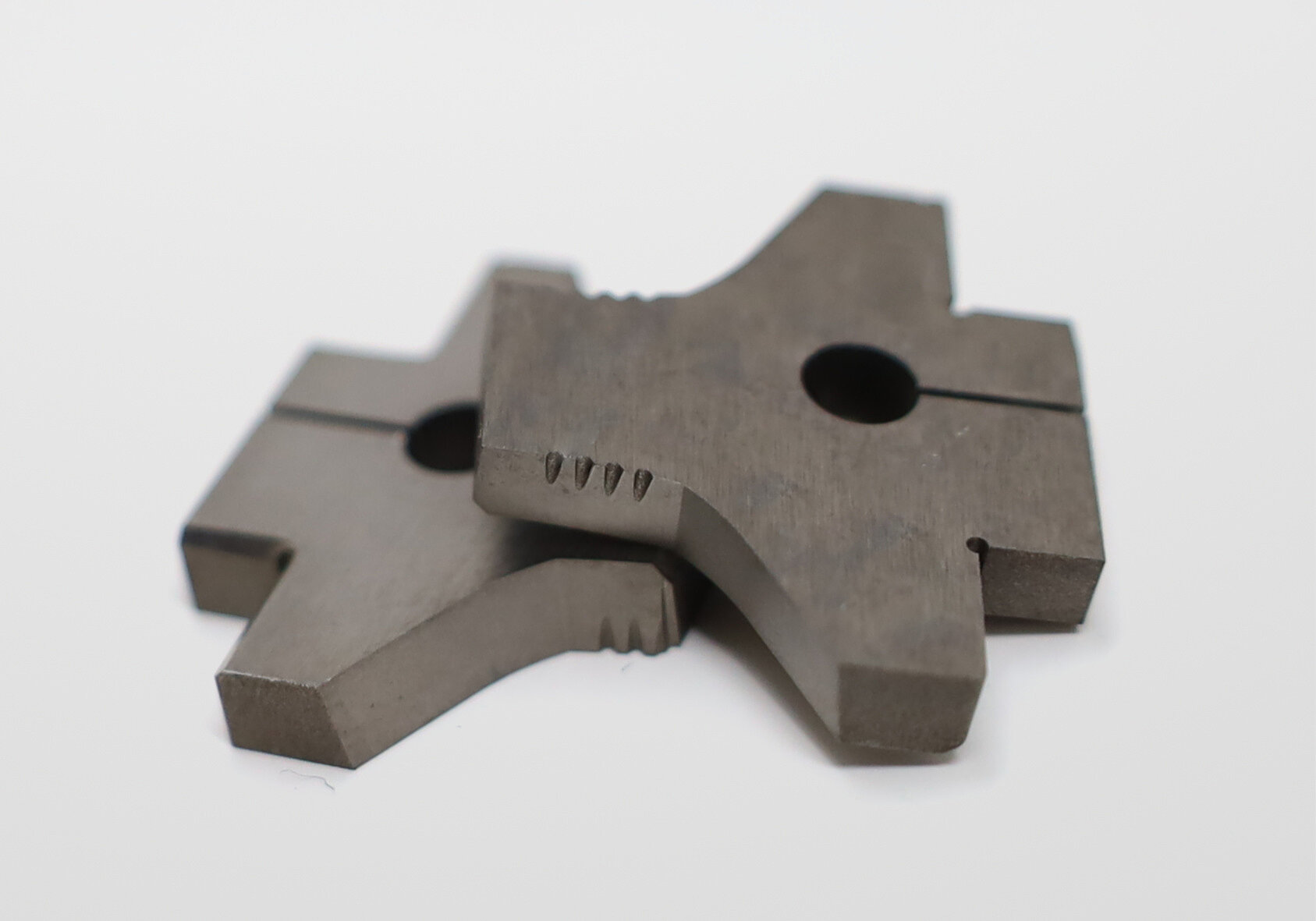

GMC/GMH tool solves the aluminum spot welding problem

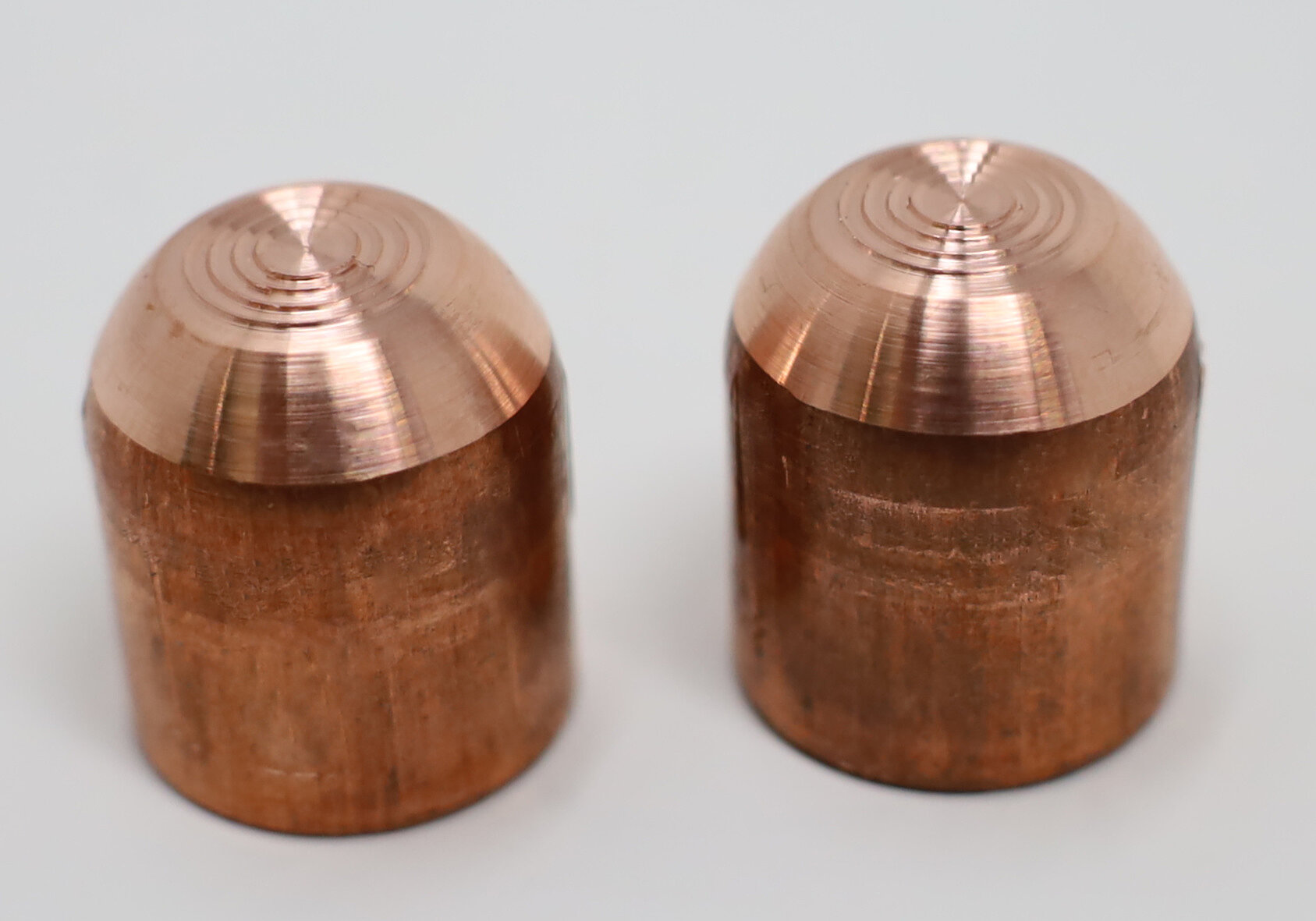

Welding aluminum often leads to unclean welding spots, increased electrode wear and frequent re-milling. To solve this problem, we have developed the GMC/GMH tool, which is used with the patented MRD technology (Multi-Ringed Dome). This means that the electrodes are no longer smooth, but in a grooved shape. The three-dimensional geometry of circular elevations and depressions penetrates the oxide layer in a defined shape and over a large area when the tip comes into contact with the aluminum. This results in maximum conductivity for the welding current. This means that significantly more welding spots can be created with perfect spot welding quality without re-milling the welding tips.*
*not approved for the production of full-size pick-up trucks
